DPD2001 (phased out)
DisplayPort to Dual DisplayPort Graphics Splitter
- Ideal for multi-display and TV-Wall application.
- Works with any desktop or notebook computer which has DisplayPort output connectivity.
- Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode.
- Fully HD compatible and provides full display performance with virtually zero latency.
- Compatible with DisplayPort™ v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards.
- Supports exceptional Secured Content Protection with HDCP 1.3 for digital content.
- DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
- Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity.
- Driver Free, Plug & Play without configuration.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Introduction
SUNIX DPD2001 DisplayPort graphics splitter lets you combine two DisplayPort monitors as one display, at a maximum resolution of 3840x1200, to make the ultimate wide screen desktop. This graphics expansion module can also clone your primary display and function as a 2 Port DisplayPort Video Splitter.
Compatible with a DisplayPort video card, SUNIX DisplayPort graphics splitter dongle requires no software installation for multi-display applications, plug-n-play, simplifying configuration and saving time. It works for standard Microsoft Windows PC with DisplayPort connectivity.
Features
Specifications
| Model | DPD2001 | |
| Description | DisplayPort to Dual DisplayPort Graphics Splitter | |
| Interface | DisplayPort™ v1.2 / 1.1a | |

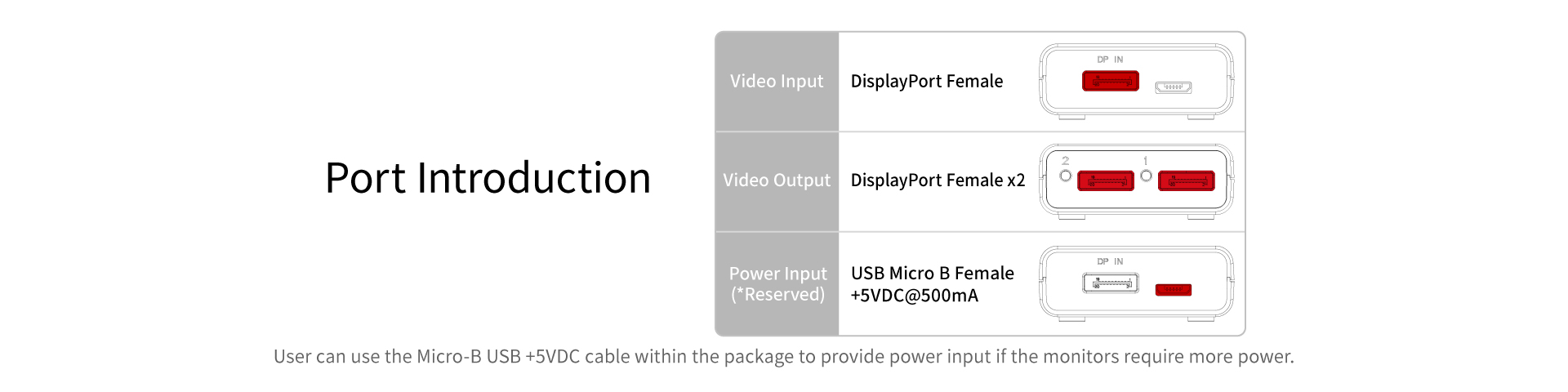

| Video Input Connectivity | DisplayPort™ v1.2 / 1.1a Female (Left Side) |
 |
| Reserve Power Input | USB Micro B +5VDC@500mA (Right Side) |
 |
| Video Output Connectivity | DisplayPort™ v1.2 / 1.1a Female x 2 |
 |
| Audio Output Connectivity |
Digital Audio output over DisplayPort (Audio channel selected over Windows Audio control panel) |
|
| Resolution Support |
Two Monitors
|
|
| Computer Settings | Each Monitor | |
| 3840 x 1200 | 1920 x 1200 | |
| 3840 x 1080 | 1920 x 1080 | |
| 3360 x 1050 | 1680 x 1050 | |
| 3200 x 1200 | 1600 x 1200 | |
| 2800 x 1050 | 1400 x 1050 | |
| 2880 x 900 | 1440 x 900 | |
| 2560 x 1024 | 1280 x 1024 | |
| 2048 x 768 | 1024 x 768 | |
| 1600 x 600 | 800 x 600 | |
| 1280 x 480 | 640 x 800 | |
| * Notes | ||
| Power Consumption |
1.45W +3.3VDC DisplayPort Bus Power |
|
| Case Material | ABS | |
| Weight | 65g ± 2g (2.3oz) | |
| Dimensions | 92.5x60.5x22.0mm | |
Regulatory Approvals |
CE, FCC, VCCI, BSMI | |
| O.S. support | Windows XP/2003/Vista/7/2008/8/8.1 (32/64-bit) | |
Environment |
Operation temp. 0 °C ～ 40 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
|
Note:
1: Based on a Vertical Refresh Rate of 60Hz.
2: GPU dependent. EDID (Extended Display Identification Data) maximum resolution capabilities may differ based on GPU capability.
3: Tiny Universal DisplayPort Graphics Splitter does not support MAC system without NV or AMD graphics card built-in.
System Requirements
- Intel PC base computer with at least one available DisplayPort.
-
Graphics source minimum SPEC requirement:
- Intel PC base computer with 3rd (IVYBRIDGE) or 4th (HASWELL) Generation Intel® Core™ i series processor and at least one available DisplayPort.
- AMD Graphics card Radeon series HD7700, 7800, 7900, R7, R9 or later version.
- NVIDIA Graphics card GTX series GTX660, 760, 770, 780 or later version.
- Monitors with DisplayPort connections.
Disclaimer
Unit may need additional power to operate, which can be provided to the unit via Micro USB to USB cable within the package.
Note*:
This product requires power to operate. Generally, when connecting to one to two monitors, the power supplied from the computer should be enough to power the unit and to have a stable connection between the monitors and this unit. However; sometimes the unit may need more power in order to function properly, such as when connecting to more than two monitors, or when the monitors require too much power then what can be provided from the connection from your PC alone. In this regards, the unit has a reserve Micro-B USB +5VDC port for the power cable, such as those to power Android products.
Accessories
Including Accessories
USB Type-A to Micro USB Cable
- Part No.:1WUC-C2025M2100000
- 1 pcs.
Optional Accessories
Mini-DisplayPort Male to DisplayPort Male Cable
- 100mm (4.0 ft.)
DisplayPort Male to DisplayPort Male Cable
- 200mm (8.0 ft.)
Support
Download Manual
| Manual | DP HUB DisplayPort Application Note |
|
| Version | v1.0 | |
| Update | 2016-01-12 11:54:56 | |
| Size | 1.8MB |
| Manual | DisplayPort 1.2 MST Support List |
|
| Version | v1.0 | |
| Update | 2016-01-12 11:55:09 | |
| Size | 292.4KB |
Download Datasheet
| Datasheet | DPD2001 Datasheet |
|
Download Guide
| Guide | DPD2001 QIG |
|
