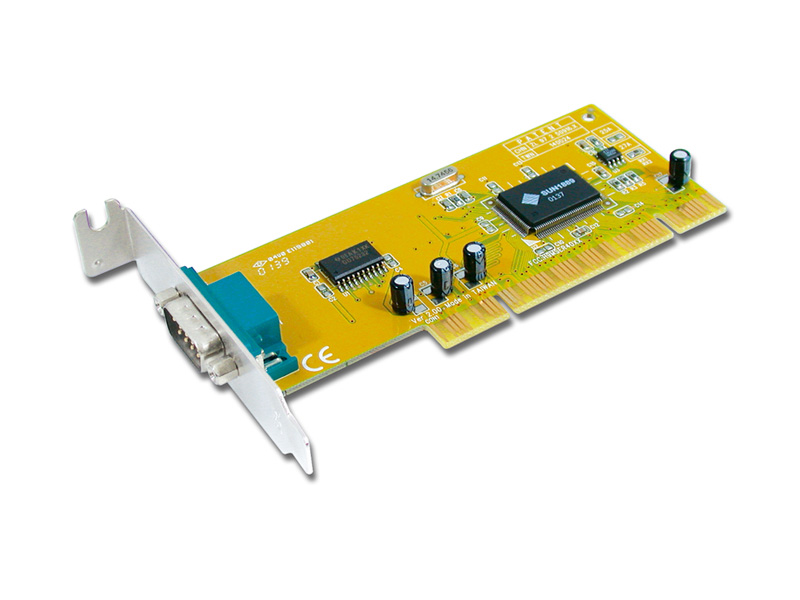

SER4027AL (phased out) (Replacement: SER5027AL)
1-port RS-232 Serial Low Profile PCI Board (DB9 Male)
- Expands 1 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- High speed SUN1889 16C650 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver 2.2 & 2.1 specification.
- Supports both 64-bit 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±2KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
SUNIX SER4027AL, Universal PCI serial communication board, allows users to add or expand one RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER4027AL card has 32-bytes onboard FIFO buffer and compatible with 16C650 UART specification. SUNIX GoldenIO card series is designed with SUNIX UART controller, SUN1889 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Support
Download Manual
| Manual | 771-SERIAL002-001 |
|
| Version | Ver 1.1 | |
| Update | 2013-05-16 10:27:53 | |
| Size | 976KB |
Download Datasheet
| Datasheet | SER4027AL-DatasheetV10 |
|
